Discover the Power and Versatility of the S5i.
Discover the Power and Versatility of the S5i.
Tern

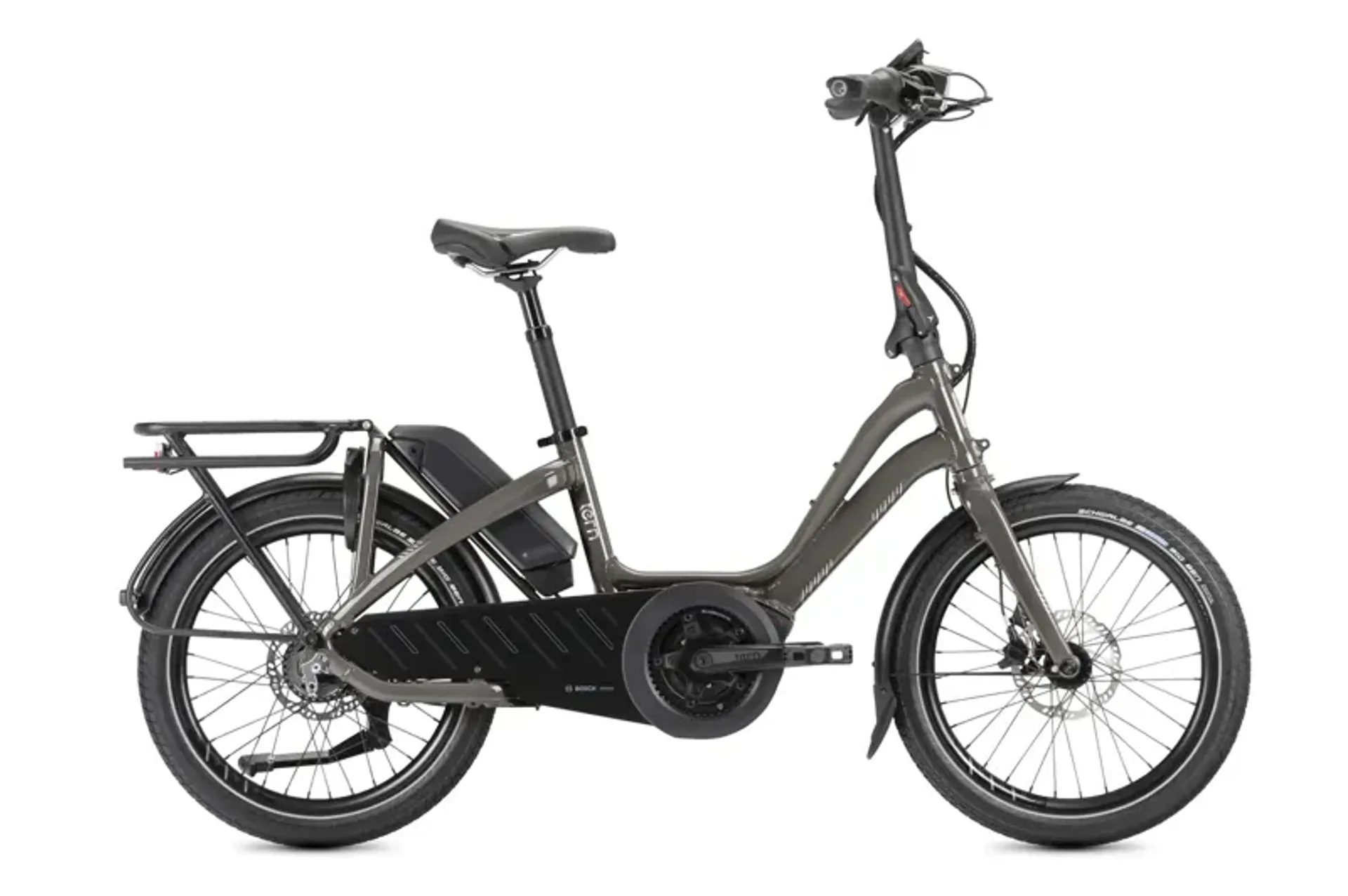

Tern NBD S5i E-Cargo Bike In Dark Bronze

$3,999.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Tern NBD S5i E-Cargo Bike In Blue Gray
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Tern NBD S5i E-Cargo Bike In Dark Bronze

Brand:Tern

Code:12-91-06

Discover the Power and Versatility of the S5i.

The Bosch Performance Line motor provides up to 65 Nm of torque and 300% support, making it ideal for various terrains. The Bosch PowerPack 500 ensures longer trips, commutes, and journeys are powered efficiently. With a Gates belt drive, enjoy clean, quiet, and maintenance-free operation.

The Shimano Nexus INTER-5E internal hub and Magura MT4 hydraulic disk brakes offer superior stopping power, even when carrying a passenger and riding fast. The ultra-low 39 cm (15.4”) standover height allows for gentle, low steps to get on and go, while the ultra-low center of gravity improves balancing and maneuvering.

Features:

  • Bosch Performance Line motor with 65 Nm torque.
  • Bosch PowerPack 500 for extended trips.
  • Gates belt drive for maintenance-free operation.
  • Shimano Nexus INTER-5E internal hub.
  • Magura MT4 hydraulic disk brakes.
  • Ultra-low 39 cm standover height.
  • Fits riders 147 - 190 cm (4'10" - 6'3").
  • Gaia Rack certified to carry up to 27 kg.
  • Frame and fork tested to 140 kg Maximum Gross Vehicle Weight.
Technical Information
  • General Info - Speeds
    1 x 5
  • General Info - Weight
    23.4 kg (51.6 lb)
  • General Info - Gear Inches
    34" - 90" (2.75 - 7.22 m)
  • General Info - Folding Size
    38 × 156 × 79 cm (15 × 61.4 × 31.1 in)

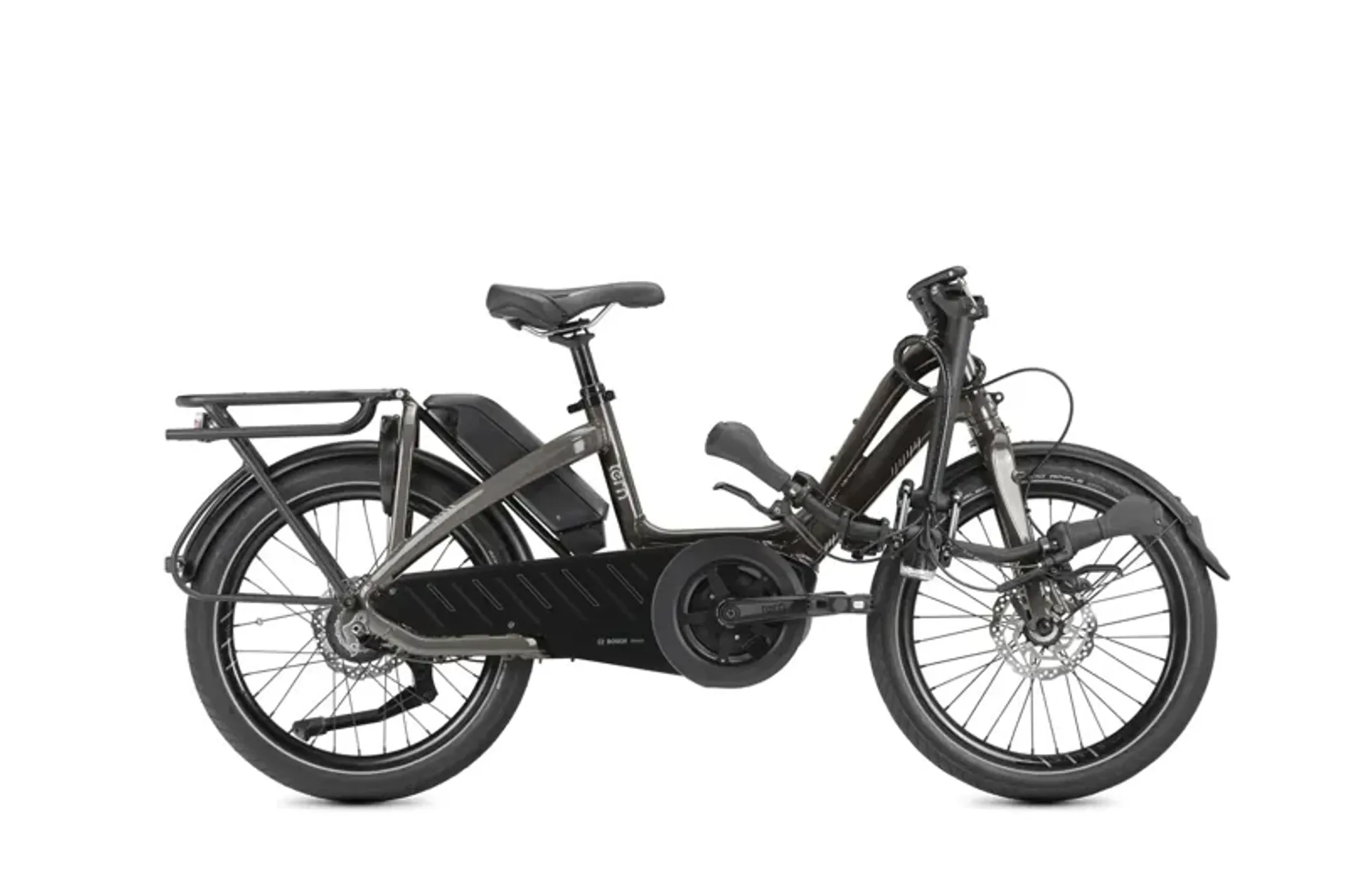

  • General Info - Folding Time
    5 sec
  • General Info - Frame Sizes
    One size
  • General Info - Distance: Seatpost to Handlebar
    45 - 52 cm (17.7 - 20.5 in)
  • General Info - Distance: Saddle to Pedal
    70 - 100 cm (27.6 - 39.4 in)
  • General Info - Suggested Rider Height
    147 - 190 cm (57.9 - 74.8 in)
  • General Info - Max Gross Vehicle Weight
    140 kg (308.6 lb)
  • General Info - Max Rider Weight
    120 kg (264.6 lb)
  • Frame - Frame
    Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140 kg
  • Frame - Fork
    Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140 kg
  • Cockpit - Handlepost
    Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm
  • Cockpit - Stem
    Tern Andros, adjustable, forged construction, patented technology
  • Cockpit - Headset
    Tern Flux by FSA, cartridge bearings, Physis integrated
  • Cockpit - Handlebar
    Tern Sweep, 6061-AL, Tern Andros adapted
  • Cockpit - Grips/Bar Tape
    Ergon
  • Cockpit - Saddle
    Tern Upright by Velo
  • Cockpit - Seatpost
    Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable
  • Cockpit - Seatpost Clamp
    Tern Collar
  • Brakes - Front Brake
    Magura MT4, hydraulic disk
  • Brakes - Rear Brake
    Magura MT4, hydraulic disk
  • Brakes - Brake Levers
    Magura, hydraulic
  • Brakes - Brake Cable & Housing
    Magura, hydraulic
  • Wheels - Front Hub
    Shimano disk
  • Wheels - Rear Hub
    Shimano Nexus INTER-5E
  • Wheels - Spokes & Nipples
    Stainless steel
  • Wheels - Rims
    Kinetix Comp, for disk
  • Wheels - Tires
    Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
  • Transmission - Shifter(s)
    Shimano 5 spd.
  • Transmission - Crankset
    Tern NBD custom, Gates CDX CNC machined beltring
  • Transmission - Cassette/Freewheel
    Gates CDX, precision CNC machined cog
  • Transmission - Chain
    Gates Carbon Drive CDX belt
  • Transmission - Pedals
    MKS Platform, Tern custom design
  • Transmission - Shifter Cable & Housing
    Shimano
  • E-System - Motor
    Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
  • E-System - Battery
    Bosch PowerPack 500
  • E-System - Display
    Bosch Intuvia, 4 mode selectable, walk assist
  • E-System - Range
    51-118 km (32-74 mi)
  • E-System - Charger
    Bosch Standard Charger
  • Bells & Whistles - Bell
    Aluminum
  • Bells & Whistles - Chainguard
    Tern Custom, full chain cover
  • Bells & Whistles - Kickstand
    Ursus, rear mount
  • Bells & Whistles - Luggage Socket
    Combo Mount
  • Bells & Whistles - Front Light
    Tern Valo Direct, 190 lumens
  • Bells & Whistles - Rear Light
    Herrmans
  • Bells & Whistles - Fenders
    SplashGuard, stainless hardware
  • Bells & Whistles - Rack(s)
    Gaia Rack, 27 kg capacity, Vertical Parking
  • Bells & Whistles - Frame Lock
    ABUS, keyed-alike with Bosch battery
