Adding some sport to your ride
Adding some sport to your ride
Tern

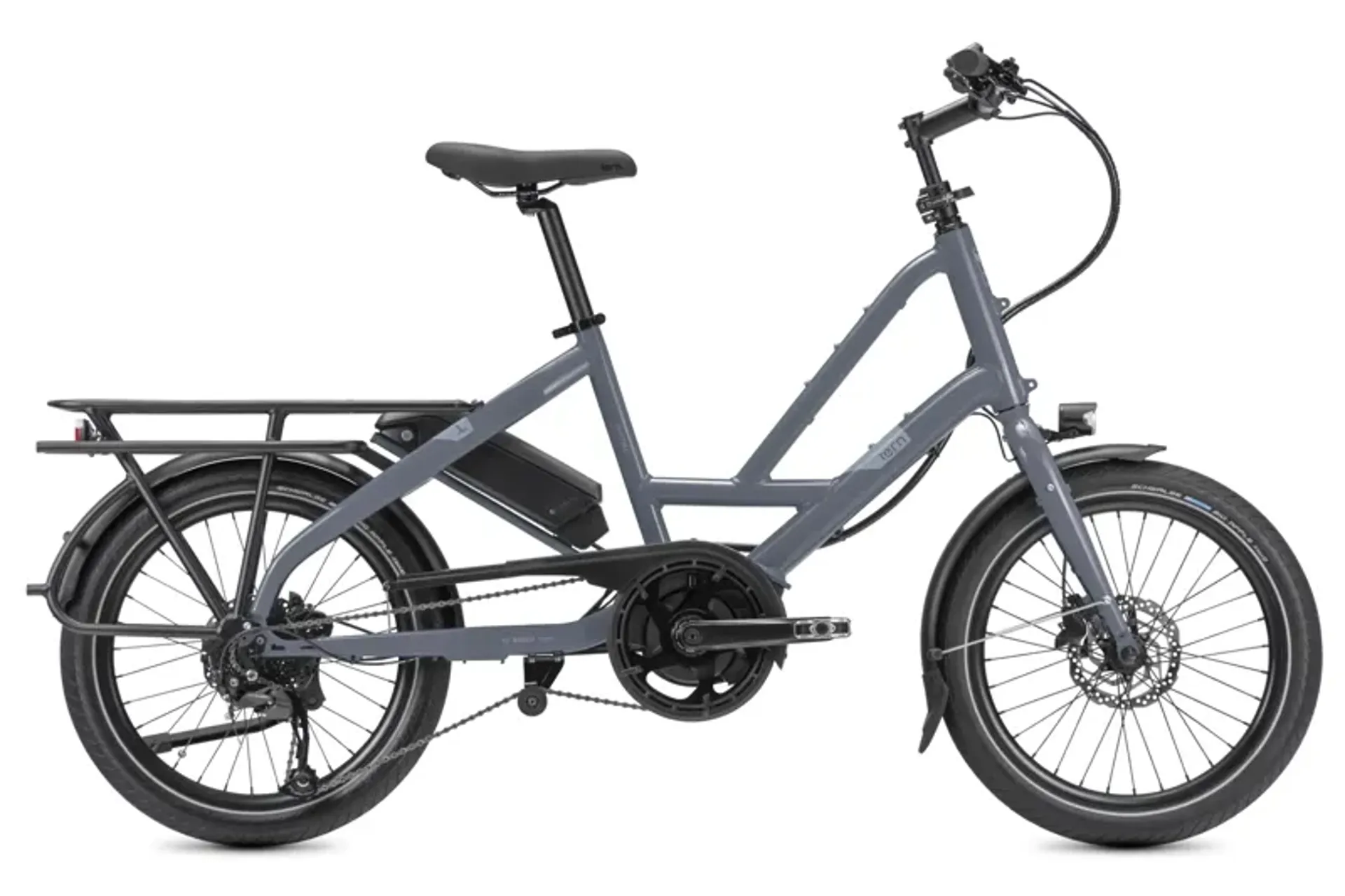

Tern Quick Haul P9 Sport E-Bike In Blue Gray

$2,899.00
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Shipping & Collection Dates

Estimated Shipping & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Shipping & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Tern Quick Haul P9 Sport E-Bike In Blue Gray

Brand:Tern

Code:12-9-25

Adding some sport to your ride

Class 3 E-bike with Bosch Performance Sport motor provides up to 65 Nm of torque and 300% support, max speed of up to 28 mph. The 1x9-speed Shimano Alivio groupset with trigger shifter ensures smooth gear transitions. Quick Haul Highlights include a cargo capacity of 50 kg on the rear rack, plus an additional 20 kg with an optional front rack.

Fits riders 160 - 195 cm (5’3” - 6’5”), and also riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter, 350 mm seatpost. Lots of available kid- and cargo-carrying accessories—easily create your perfect setup. Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier.

Shimano hydraulic disk brakes provide reliable stopping power—even when heavily loaded and riding fast. Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight.

Features:

  • Bosch Performance Sport motor with 65 Nm torque
  • Max speed of up to 28 mph
  • 1x9-speed Shimano Alivio groupset
  • Cargo capacity: 50 kg rear, 20 kg front
  • Fits riders 160 - 195 cm and 145 - 180 cm with shorter seatpost
  • Ultra-low 490 mm standover height
  • Shimano hydraulic disk brakes
  • EFBE-tested frame and fork
Technical Information
  • Speeds
    1 x 9
  • Weight
    23 kg (50.7 lb)
  • Gear Inches
    31" - 95" (2.45 - 7.57 m)
  • Frame Sizes
    One size
  • Distance: Seatpost to Handlebar
    60 - 64 cm (23.6 - 25.2 in)
  • Distance: Saddle to Pedal
    68 - 110 cm (26.8 - 43.3 in)
  • Suggested Rider Height
    160 - 195 cm (63 - 76.8 in)
  • Max Gross Vehicle Weight
    150 kg (330.7 lb)
  • Max Rider Weight
    120 kg (264.6 lb)
  • Frame
    Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
  • Fork
    Cargo, steel, EFBE approved: 150 kg
  • Stem
    Speedlifter, 150 mm extension, 3D Forged stem, 31.8
  • Headset
    TH, cartridge bearings
  • Handlebar
    Low riser, 31.8, 6061-AL
  • Grips/Bar Tape
    Velo ergonomic, lock-on
  • Saddle
    Velo Comfort
  • Seatpost
    31.6 mm, 6061-AL, micro-adjust clamp
  • Seatpost Clamp
    Tern Collar
  • Front Brake
    Shimano, hydraulic disk
  • Rear Brake
    Shimano, hydraulic disk
  • Brake Levers
    Shimano, hydraulic disk
  • Brake Cable & Housing
    Shimano, hydraulic disk
  • Front Hub
    Shimano disk
  • Rear Hub
    Shimano disk
  • Spokes & Nipples
    Stainless steel
  • Rims
    Kinetix Comp, for disk
  • Tires
    Schwalbe Big Apple, 55-406, puncture protection, Reflex
  • Shifter(s)
    Shimano Alivio, 1 x 9 spd, trigger
  • Rear Derailleur
    Shimano Alivio Shadow
  • Crankset
    Tern custom, forged 6061-AL crankarm
  • Cassette/Freewheel
    Shimano 11-34T, 9 spd
  • Bottom Bracket
    Motor integrated
  • Chain
    KMC for eBike, 9 spd
  • Pedals
    Urban with non-slip surface
  • Shifter Cable & Housing
    SP
  • Motor
    Class 3, Bosch Performance Sport, 300% Assist, 65 Nm Torque, max speed 28 mph
  • Battery
    Bosch PowerPack 400
  • Display
    Bosch Purion
  • Range
    400 Wh: 51 - 100 km (31.7 - 62.1 mi)
  • Charger
    Compact Charger, 100-240V, 2A
  • Bell
    Aluminum
  • Chainguard
    SKS Chainblade
  • Kickstand
    Pletscher design, rear mount
  • Luggage Socket
    Combo Mount
  • Front Light
    Herrmans, 120 lumens
  • Rear Light
    Herrmans
  • Fenders
    Chromeplastic, stainless hardware
  • Rack(s)
    Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
