Experience the power and versatility of the S00.
Experience the power and versatility of the S00.
Tern

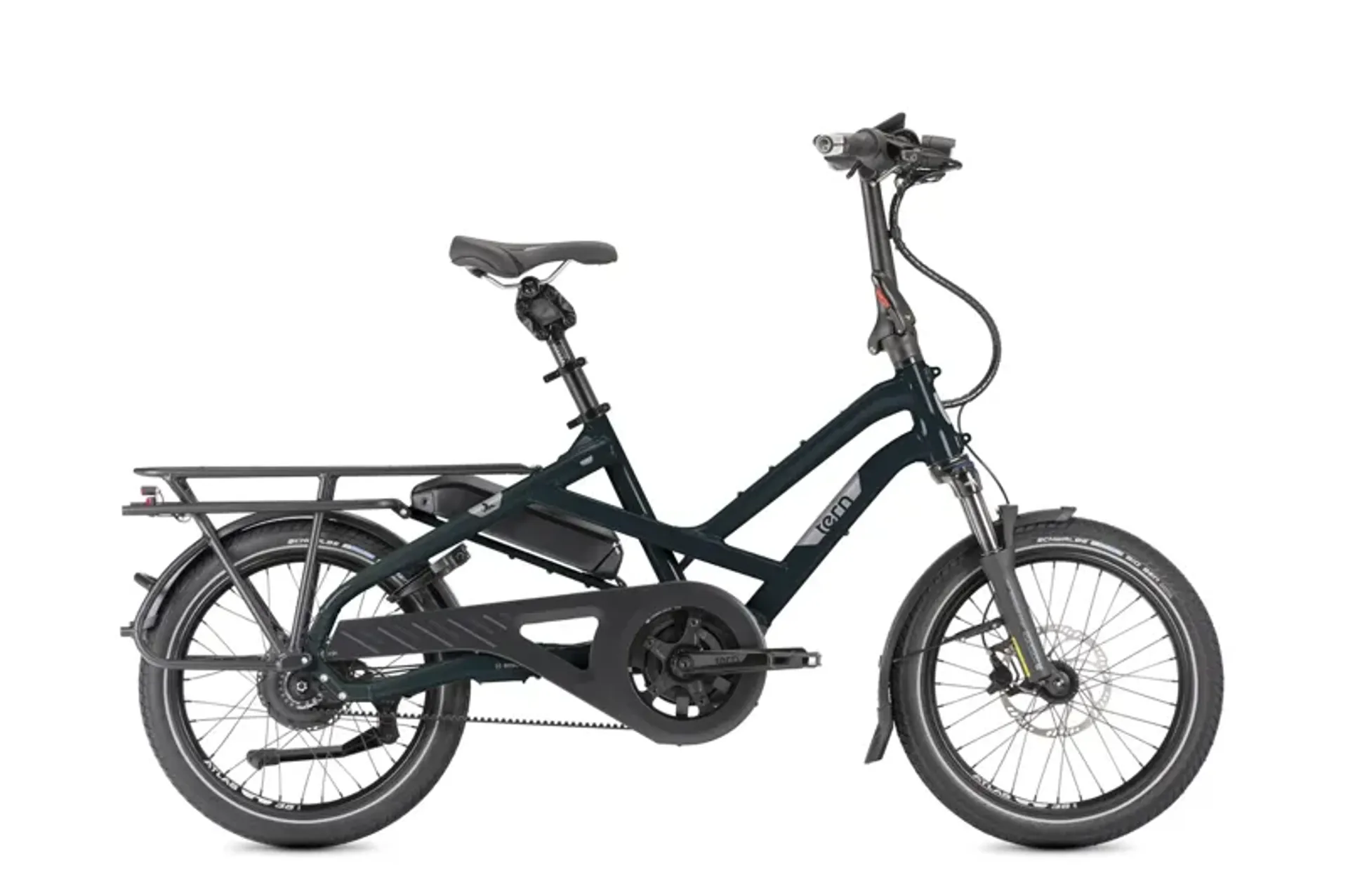

Tern HSD S00 E-Cargo Bike In Dark Blue

$5,499.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Tern HSD S00 E-Cargo Bike In Dark Blue

Brand:Tern

Code:12-91-87

Experience the power and versatility of the S00.

The Class 1 Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque, increasing pedaling power by up to 340%. The Bosch ConnectModule enhances theft-protection functions with features like eBike Alarm and eBikeTracking. The Kiox 300 color display automatically activates eBike Lock when removed from the bike.

The S00 is equipped with a silent, smooth, and virtually maintenance-free Gates CDX Belt Drive. It features an Enviolo Heavy Duty internally geared hub with a 380% gear ratio range and twist shifter. The ultra-bright Ignis Headlight with high/low beam ensures 24/7 visibility, regardless of the weather. The always-on RearStop Brake Light helps safely signal stops.

Control all Smart System functions at your fingertips via the Bosch eBike Flow App. The Bosch PowerPack 545 battery provides a long range of up to 121 km (76 mi). The bike is cargo and passenger-ready with a large rear rack capacity of 80 kg (176 lb). It fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit.

Features:

  • Bosch Performance Line motor with 75 Nm torque.
  • Bosch Smart System with eBike Alarm and eBikeTracking.
  • Kiox 300 color display with eBike Lock.
  • Gates CDX Belt Drive for smooth operation.
  • Enviolo Heavy Duty hub with 380% gear ratio.
  • Ignis Headlight with high/low beam.
  • RearStop Brake Light for safety.
  • Bosch eBike Flow App for system control.
  • Bosch PowerPack 545 battery with 121 km range.
  • 80 kg rear rack capacity for cargo and passengers.
  • Fits riders 150 - 195 cm with adjustable cockpit.
Technical Information
  • Speeds
    ∞
  • Weight
    28 kg (61.7 lb)
  • Gear Inches
    28" - 106" (2.23 - 8.47 m)

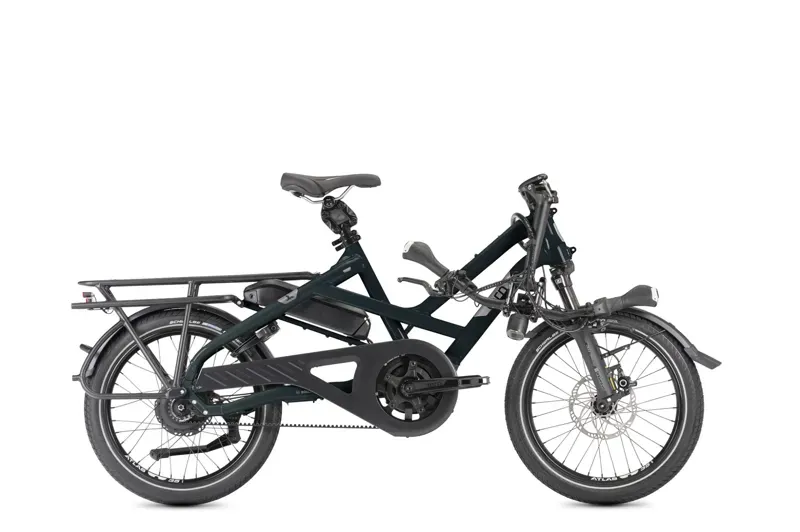

  • Folding Size
    165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)
  • Folding Time
    5 seconds
  • Frame Sizes
    One size
  • Distance: Seatpost to Handlebar
    52 - 62.5 cm (20.5 - 24.6 in)
  • Distance: Saddle to Pedal
    76 - 110 cm (29.9 - 43.3 in)
  • Suggested Rider Height
    150 - 195 cm (59.1 - 76.8 in)
  • Max Gross Vehicle Weight
    180 kg (396.8 lb)
  • Max Rider Weight
    120 kg (264.6 lb)
  • Frame
    Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
  • Fork
    Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
  • Handlepost
    Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
  • Stem
    Tern Andros, adjustable, forged construction, patented technology
  • Headset
    Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
  • Handlebar
    Tern Sweep, 6061-AL, Tern Andros adapted
  • Grips/Bar Tape
    Ergon
  • Saddle
    Tern Upright by Velo
  • Seatpost
    Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
  • Seatpost Clamp
    Tern Collar
  • Front Brake
    Magura MT4, hydraulic disk, 180 mm rotor
  • Rear Brake
    Magura MT4, hydraulic disk, 160 mm rotor
  • Brake Levers
    Magura MT4 e-stop, hydraulic, with brake light sensor
  • Brake Cable & Housing
    Magura, hydraulic
  • Front Wheel
    Tern Atlas H, cargo wheel
  • Rear Wheel
    Tern Atlas H, cargo wheel
  • Front Hub
    Novatec, Thru-axle, sealed bearings
  • Rear Hub
    Enviolo Heavy Duty, 380% continuously variable range
  • Spokes & Nipples
    Stainless steel, double-butted
  • Rims
    Tern Atlas H, wide 35 mm
  • Tires
    Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
  • Shifter(s)
    Enviolo, Twist
  • Crankset
    Tern HSD custom, Gates CDX CNC machined beltring
  • Cassette/Freewheel
    Gates CDX, precision CNC machined cog
  • Bottom Bracket
    Motor integrated
  • Chain
    Gates Carbon Drive CDX belt
  • Pedals
    Urban with non-slip surface, sealed bearings
  • Motor
    Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
  • Battery
    Bosch PowerPack 545
  • Display
    Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
  • Lock & Alarm
    Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
  • Range
    545 Wh: 51-121 km (32-76 mi)
  • Charger
    220V, 4A (EU); 100-240V, 4A (US)
  • Bell
    Pitch Plus, brass
  • Chainguard
    Tern Custom, full chain cover
  • Kickstand
    Ursus, rear mount
  • Luggage Socket
    Combo Mount
  • Front Light
    Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
  • Rear Light
    RearStop Brake Light, Always on
  • Fenders
    SKS, stainless hardware
  • Rack(s)
    Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity
  • Frame Lock
    ABUS, keyed-alike with Bosch battery
