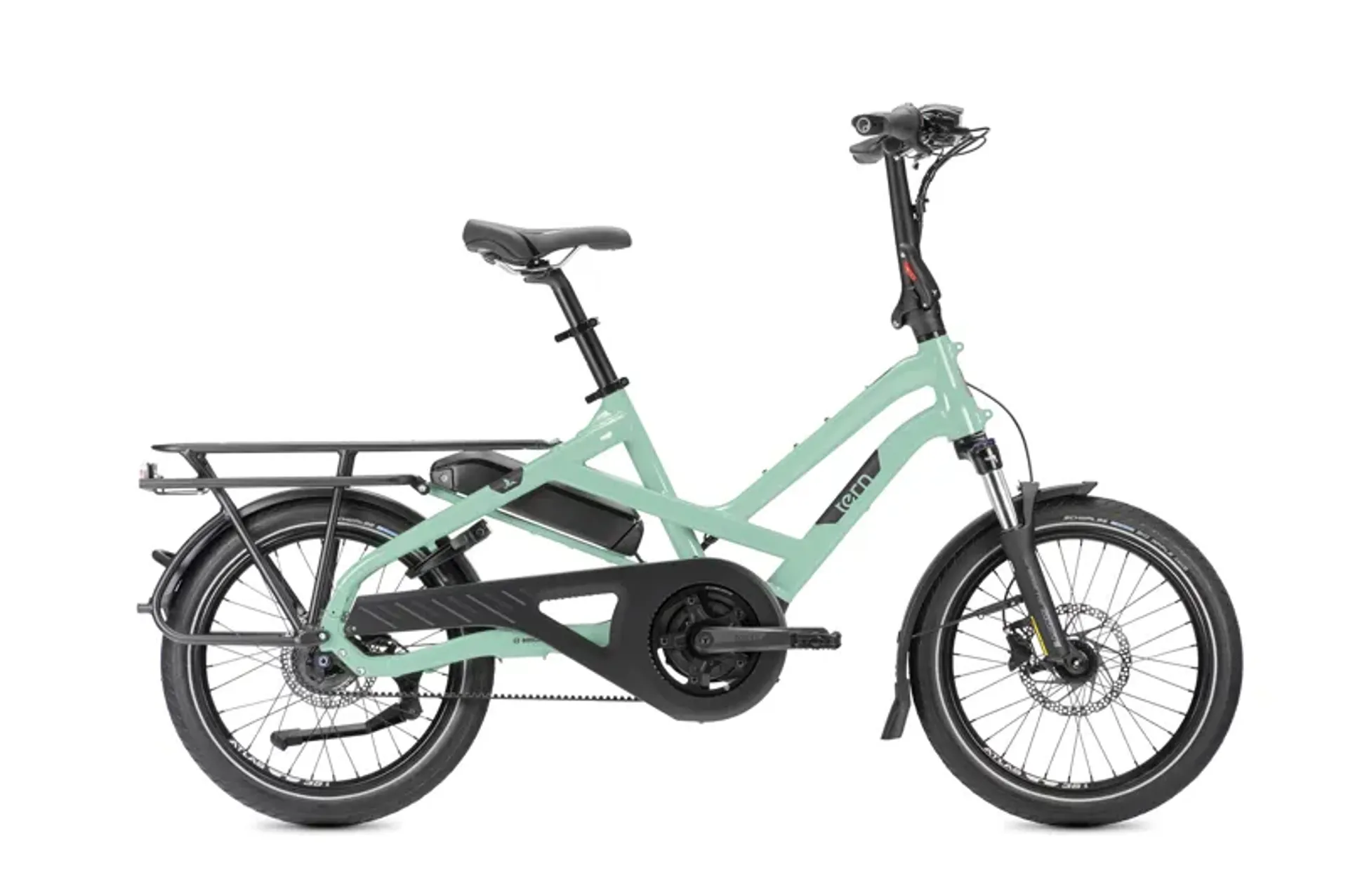

Tern HSD P5i E-Bike In Sea Breeze

Brand:Tern

Code:12-91-83

Control all Smart System functions at your fingertips via the Bosch eBike Flow App.

Keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!

Features:
  • Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
  • Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
  • Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
  • Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight

What makes it a P5i?

  • Class 1 Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
  • Detachable and easy-to-understand Intuvia 100 display
  • Silent, smooth, and virtually maintenance-free Gates CDX Belt Drive
  • Shimano Nexus INTER-5E internally geared hub
Technical Information
  • Speeds
    1 x 5
  • Weight
    27.9 kg (61.5 lb)
  • Gear Inches
    38" - 99" (2.99 - 7.88 m)
  • Folding Size
    165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)
  • Folding Time
    5 seconds
  • Frame Sizes
    One size
  • Distance: Seatpost to Handlebar
    54.5 - 62.5 cm (21.5 - 24.6 in)
  • Distance: Saddle to Pedal
    70 - 102.5 cm (27.6 - 40.4 in)
  • Suggested Rider Height
    150 - 195 cm (59.1 - 76.8 in)
  • Max Gross Vehicle Weight
    180 kg (396.8 lb)
  • Max Rider Weight
    120 kg (264.6 lb)
  • Frame
    Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
  • Fork
    Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
  • Handlepost
    Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
  • Stem
    Tern Andros, adjustable, forged construction, patented technology
  • Headset
    Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
  • Handlebar
    Tern Sweep, 6061-AL, Tern Andros adapted
  • Grips/Bar Tape
    Ergon
  • Saddle
    Tern Upright by Velo
  • Seatpost
    Tern Telescope, 34.9/30.9 mm, 2014-AL
  • Seatpost Clamp
    Tern Collar
  • Front Brake
    Shimano, hydraulic disk, 180 mm rotor
  • Rear Brake
    Shimano, hydraulic disk, 160 mm rotor
  • Brake Levers
    Shimano, hydraulic disk
  • Brake Cable & Housing
    Shimano, hydraulic disk
  • Front Wheel
    Tern Atlas H, cargo wheel
  • Rear Wheel
    Tern Atlas H, cargo wheel
  • Front Hub
    Novatec, Thru-axle, sealed bearings
  • Rear Hub
    Shimano Nexus INTER-5E
  • Spokes & Nipples
    Stainless steel
  • Rims
    Tern Atlas H, wide 35 mm
  • Tires
    Schwalbe Big Apple, 55-406, puncture protection, Reflex
  • Shifter(s)
    Shimano Nexus INTER-5E
  • Crankset
    Tern HSD custom, Gates CDX CNC machined beltring
  • Cassette/Freewheel
    Gates CDX, precision CNC machined cog
  • Bottom Bracket
    Motor integrated
  • Chain
    Gates Carbon Drive CDX belt
  • Pedals
    Urban with non-slip surface
  • Shifter Cable & Housing
    Shimano
  • Motor
    Bosch Performance, 340% Assist, 75 Nm Torque, Class 1 max speed 20 mph (US)
  • Battery
    Bosch PowerPack 545
  • Display
    Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
  • Lock & Alarm
    Optional
  • Range
    545 Wh: 51-121 km (32-76 mi)
  • Charger
    220V, 4A (EU); 100-240V, 4A (US)
  • Bell
    Pitch Plus, brass
  • Chainguard
    Tern Custom, full chain cover
  • Kickstand
    Ursus, rear mount
  • Luggage Socket
    Combo Mount
  • Front Light
    Tern Valo Direct, 190 lumens
  • Rear Light
    Herrmans H-Trace, for eBike
  • Fenders
    SKS, stainless hardware
  • Rack(s)
    Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity
  • Frame Lock
    ABUS, keyed-alike with Bosch battery
