Experience unparalleled power and versatility with this advanced e-bike.
Experience unparalleled power and versatility with this advanced e-bike.
Tern

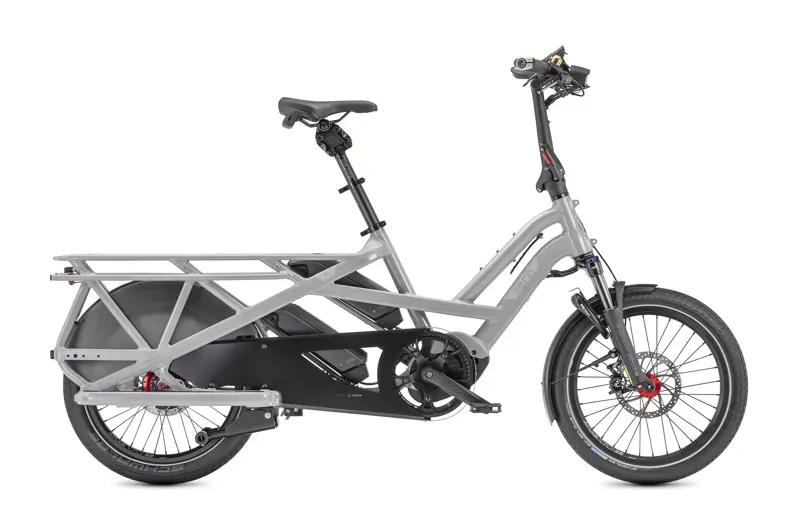

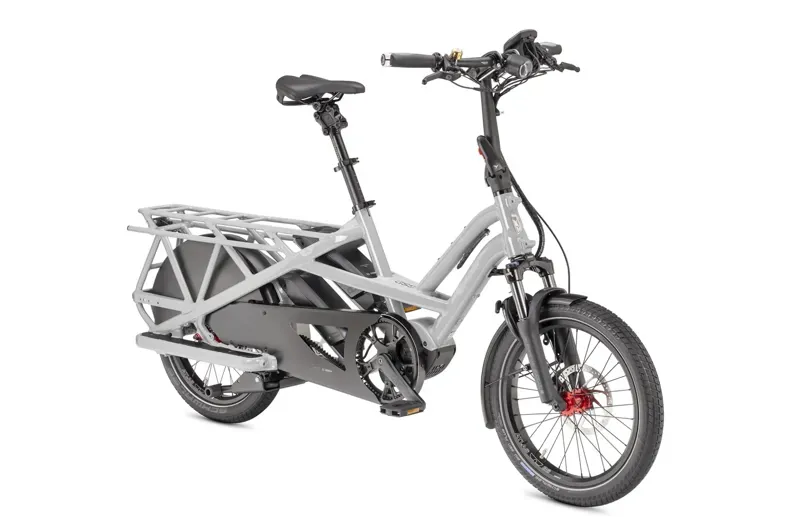

Tern GSD R14 500wh E-Cargo Bike In Forge Gray

$7,499.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Tern GSD R14 500wh E-Cargo Bike In Forge Gray

Brand:Tern

Code:12-9-75

Experience unparalleled power and versatility with this advanced e-bike.

The Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support, making it perfect for heavy-duty tasks. With a maximum gross vehicle weight of 200 kg (440 lb), this e-bike is designed to handle substantial loads with ease. The Bosch dual-battery system offers a range of up to 206 km (128 mi), ensuring you can go the distance without worry.

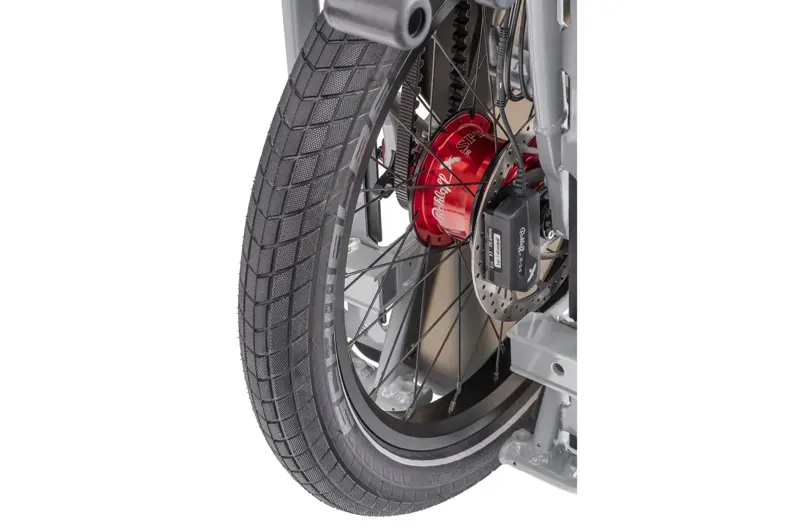

The Rohloff® Speedhub features a 526% gear range, electronic shifting, and automatic downshifting, providing a seamless riding experience. The Gates® CDX Belt Drive is silent, smooth, and virtually maintenance-free, enhancing the bike's reliability. An adjustable cockpit comfortably fits riders from 150 to 195 cm (4’11” to 6’5”), ensuring a perfect fit for a wide range of users.

Safety and convenience are prioritized with features like the always-on RearStop™ Brake Light and ultra-bright Ignis™ Headlight for 24/7 visibility. The powerful Magura® MT5 eSTOP 4-piston hydraulic disk brakes offer responsive stopping power. The integrated Abus® Wheel Lock is keyed-alike with the battery for added security.

Features:

  • Bosch® Cargo Line Motor with 85 Nm torque.
  • Bosch dual-battery system for up to 206 km range.
  • Rohloff® Speedhub with 526% gear range.
  • Gates® CDX Belt Drive for low maintenance.
  • Adjustable cockpit for riders 150 – 195 cm.
  • Atlas Lockstand™ auto-locks for stability.
  • Heavy-duty frame-integrated rear rack.
  • Cane Creek® Thudbuster ST Suspension Seatpost.
  • Always-on RearStop™ Brake Light.
  • Ultra-bright Ignis™ Headlight.
  • Magura® MT5 eSTOP hydraulic disk brakes.
  • Integrated Abus® Wheel Lock.
  • Atlas Wheels with custom CNC hubs.
  • Wide range of cargo and passenger accessories.
  • Fits two Thule® Yepp Maxi seats.
Technical Information
  • Speeds
    1 x 14
  • Weight
    37.26 kg (82.1 lb)
  • Gear Inches
    19" - 102" (1.54 - 8.10 m)

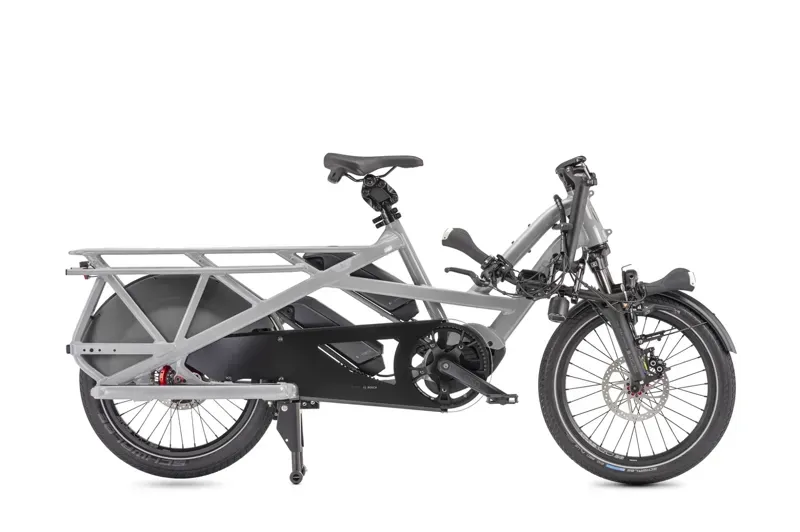

  • Folding Size
    176 × 40.5 × 87 cm (69.3 × 15.9 × 34.3 in)
  • Folding Time
    5 sec
  • Frame Sizes
    One size
  • Distance: Seatpost to Handlebar
    49 - 59 cm (19.3 - 23.2 in)
  • Distance: Saddle to Pedal
    69 - 105 cm (27.2 - 41.3 in)
  • Suggested Rider Height
    150 - 195 cm (59.1 - 76.8 in)
  • Max Gross Vehicle Weight
    200 kg (440.9 lb)
  • Max Rider Weight
    120 kg (264.6 lb)
  • Frame
    Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
  • Fork
    Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
  • Handlepost
    Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
  • Stem
    Tern Andros, adjustable, forged construction, patented technology
  • Headset
    Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
  • Handlebar
    Tern Sweep, 6061-AL, Tern Andros adapted
  • Grips/Bar Tape
    Ergon
  • Saddle
    Tern GSD by Velo, with rear handle
  • Seatpost
    Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
  • Seatpost Clamp
    Tern Collar, 6061-AL, 2pc
  • Front Brake
    Magura MT5, 4-piston hydraulic disk, 180 mm rotor, Sport pads
  • Rear Brake
    Magura MT5, 4-piston hydraulic disk, 180 mm rotor, Sport pads
  • Brake Levers
    Magura MT5 e-stop, hydraulic, with brake sensor
  • Front Hub
    Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
  • Rear Hub
    Rohloff E14, 526% range, Boost
  • Spokes & Nipples
    Stainless steel, 13G
  • Rims
    Tern Atlas, ultra wide 36 mm, dual reinforced joint
  • Tires
    F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
  • Shifter(s)
    Rohloff E14, e-shift 14 spd
  • Crankset
    Tern GSD custom, Gates CDX CNC machined beltring
  • Cassette/Freewheel
    Gates CDX, precision CNC machined cog
  • Bottom Bracket
    Motor integrated
  • Chain
    Gates Carbon Drive CDX belt
  • Pedals
    Urban with non-slip surface, sealed bearings
  • Shifter Cable & Housing
    Rohloff E14, e-shift
  • Motor
    Class 1, Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
  • Battery
    Bosch Dual Battery system, 500 Wh or 1000 Wh
  • Display
    Bosch Intuvia, Rohloff integrated shifting w/ auto downshift
  • Range
    500 Wh/1000 Wh: 102-206 km (63-128 mi)
  • Charger
    220V, 4A (EU); 100-240V, 4A (US)
  • Bell
    Pitch Plus, brass
  • Chainguard
    Tern Custom, full chain cover
  • Kickstand
    Atlas Lockstand, w/ remote unlock, patented technology
  • Luggage Socket
    Combo Mount
  • Front Light
    Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
  • Rear Light
    RearStop Brake Light, Always on brake light
  • Fenders
    Integrated Wheel Guard, AL6061, w/ Side Skirt
  • Rack(s)
    Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb)
  • Accessory
    ABUS, keyed-alike with Bosch battery
